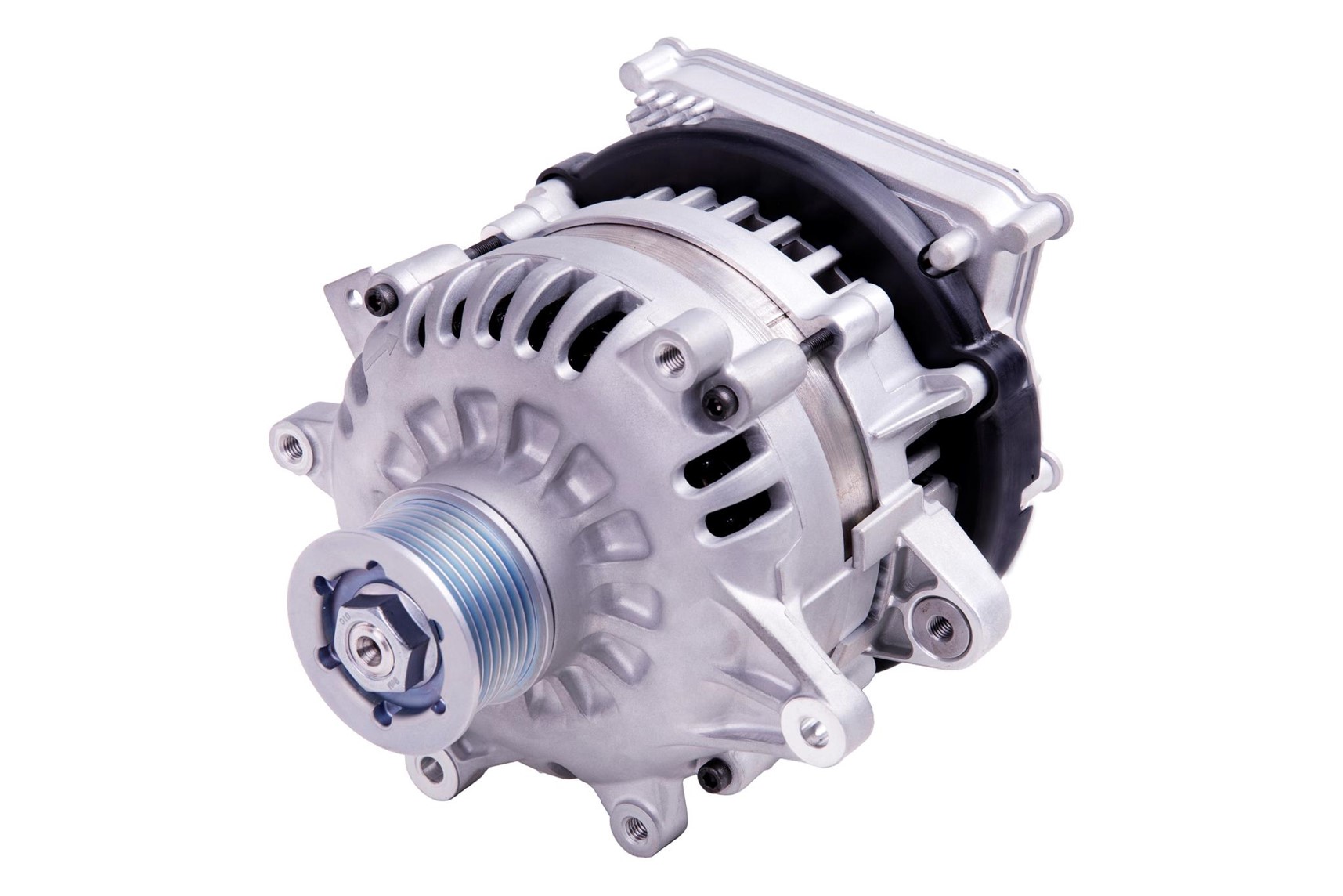

  • 48 V BSG Air-Cooled


    © Vitesco Technologies

    • Air cooled BSG with integrated inverter
    • Permanent magnet synchronous motor
    • Generates CO₂ benefits and drivability improvements
    • No service required
    • IP2X / IP6K9K compliant
    • Very high power density
    • Start torque: 55 Nm
    • Peak Power: 12 kW in recuperation mode
    • Weight: ~10 kg
    • Ambient temperature: -40°C up to +105°C
    • Dim (w/o pulley): L: 165 mm / Diam: 155 mm
    • Functional Safety: ASIL-B

    Vehicle Types
