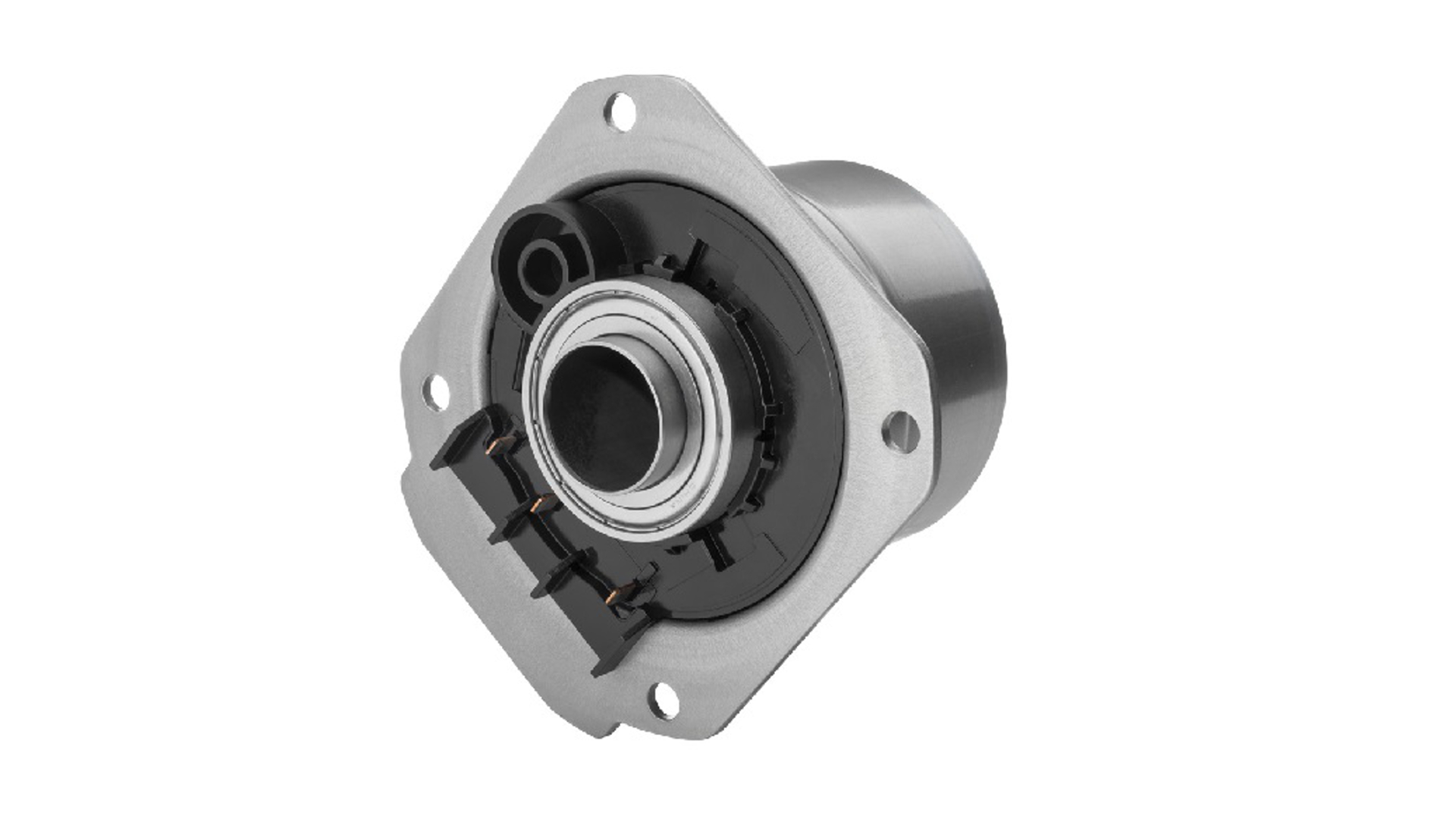

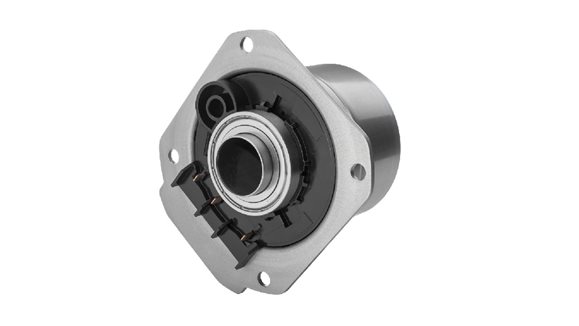

  • Brushless DC Motor High Efficency for Brake Applications

    © Vitesco Technologies GmbH (exclusive rights)

    • Small package, low weight, due to high copperwire filling rate which is caused by the special single tooth winding technology
    • Low content of rare earth material
    • Symmetrical Back EMF layout for easy electronic commutation
    • Low inertia due to optimized rotorcore concept by usage of tube style shaft
    • Motorsize: lenght 89 mm, diameter 80 mm
    • Motortorqueconstant up to 4,5 Nm at 90 A
    • Performanceclass up to 1.400W in peak
    • Temp. range: -40°C up to 120°C
    • Vibration resistant up to 40 g

    Vehicle Types
