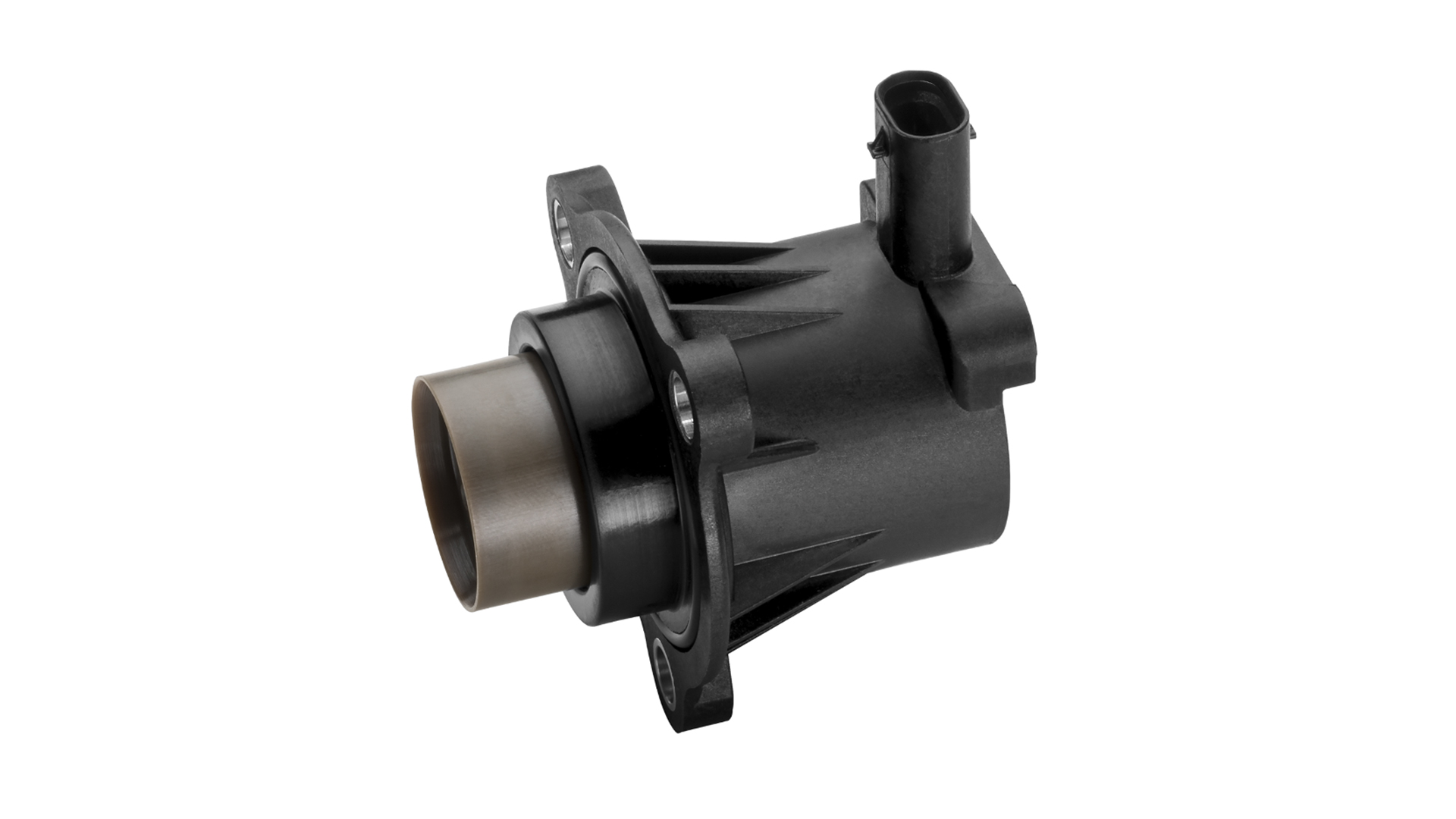

  • Electrical Compressor Bypass Valve


    © Vitesco Technologies GmbH (exclusive rights)

    • Electromagnetic on-off solenoid
    • Improved performance and size
    • No vacuum lines, tank, or vacuum control valve needed
    • Mounted directly on turbocharger or air duct
    • Nominal operating voltage: 12 V
    • Response time: < 50 ms at 20°C; 13.5 V
    • Operation (gas) temperature: -40°C up to 180°C; short term (30min): 200°C
    • Ambient temp.: -40°C up to 150°C
    • Storage temp.: -40°C up to 200°C
    • Travel: ≥ 5 mm; Poppet Ø: 26 mm
