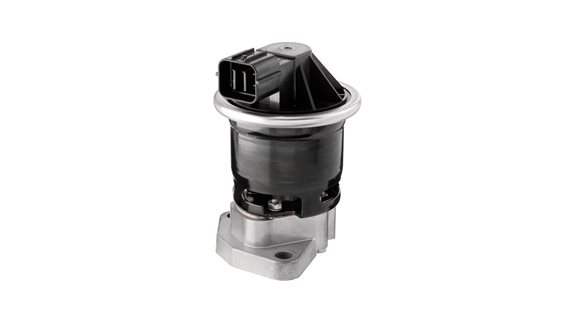

  • Electrical Exhaust Gas Recirculation Valve (EEGR)


    © Vitesco Technologies

    • Electric actuation has faster response and more control than conventional vacuum systems
    • Eliminates vacuum regulator and connecting hoses
    • Can be tailored to customer flow requirements
    • Current consumption at max flow: 1.0 A at 20°C
    • Nominal operating voltage: 12V DC
    • Max current consumption: 1.5 A
    • Nominal coil resistance: 8.0Ω at 20°C
    • Nominal operating frequency: 90 Hz up to 175 Hz
    • Position sensor supply voltage: 5V DC
    • Response time (total stroke): < 50 ms at 20°C, 13.5V DC

    Vehicle Types
