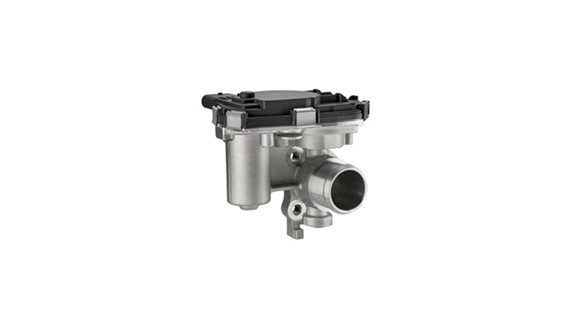

  • Exhaust Gas Recirculation - Low Pressure Gasoline (LP - EGR)


    © Vitesco Technologies

    • High flow LP EGR valve with small pressure drop
    • Non-contacting sensor, flexible output, not sensitive against magnetic fields
    • Improved flow accuracy due to Multi Point Calibration
    • Response time (t90): < 90 ms
    • Nominal supply voltage: 12 VDC
    • Position sensor supply voltage: 5 VDC
    • Max flow: 75 kg/h at dP 20 hPa (24mm dia. flap)
    • Max differential pressure over flap: 300 kPa
    • Internal leakage: < 1.5 kg/h at dP 600 hPa (24mm dia. flap)
    • Exhaust gas temp.: up to 200°C
