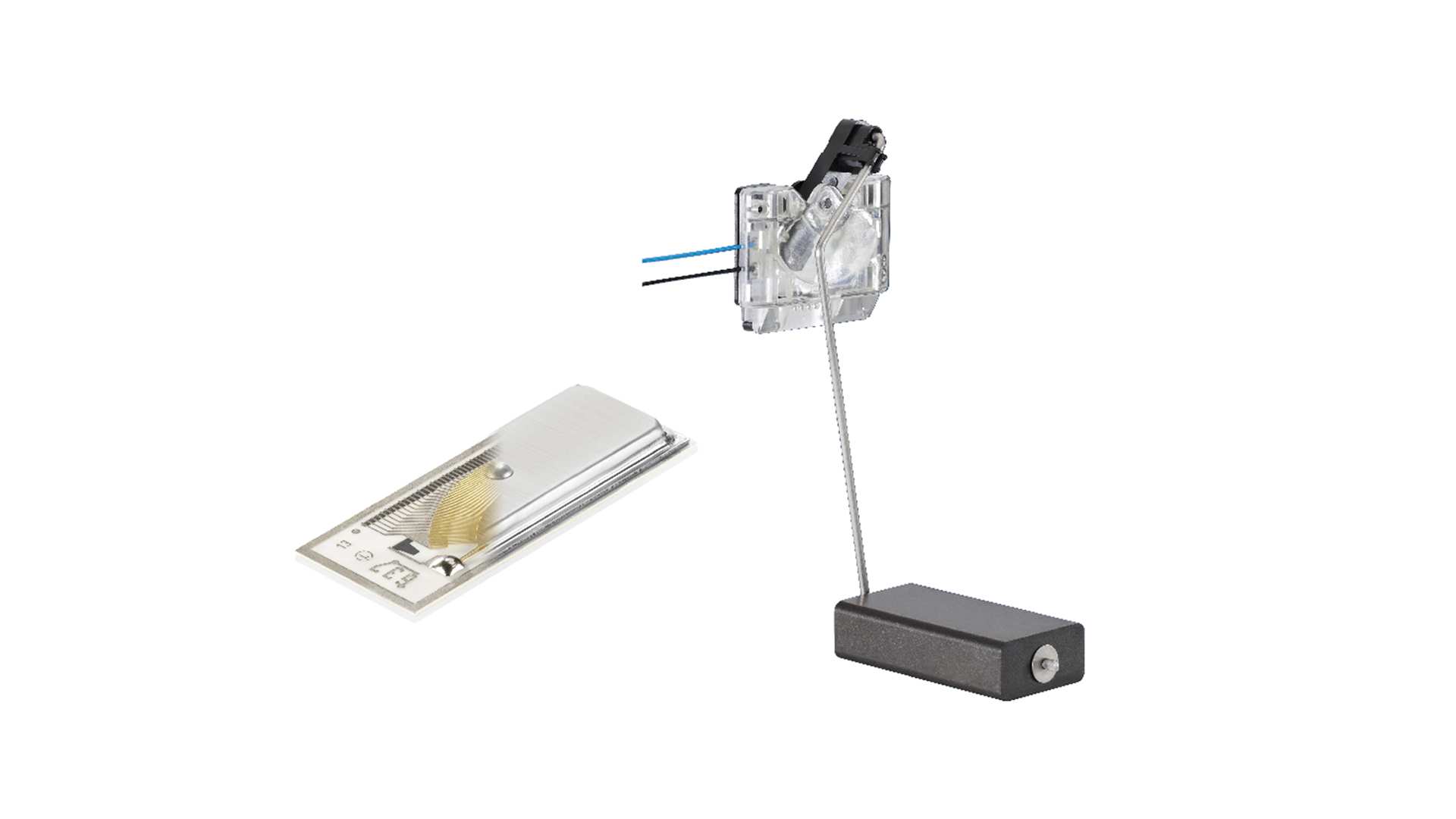

Fuel Level Sensor with a fully capsulated sensor element. Fuel Level Sensor with an open contact system to measure the fuel level in the tank based on the float arm position.
Hermetically sealed contacts assure robust protection against corrosion
Longer life time (>10 million cycles) because of a wear free measurement system
Electromagnetic compatibility
Measuring range: up to 90°
Operating current: up to 20 mA
Resolution: 1.7 Degree / Pad
Max. resistor tolerance: ± 1%
Operating temperature: -40°C up to 80°C
