Fuel Level Sensor with an open contact system to measure the fuel level in the tank based on the float arm position.

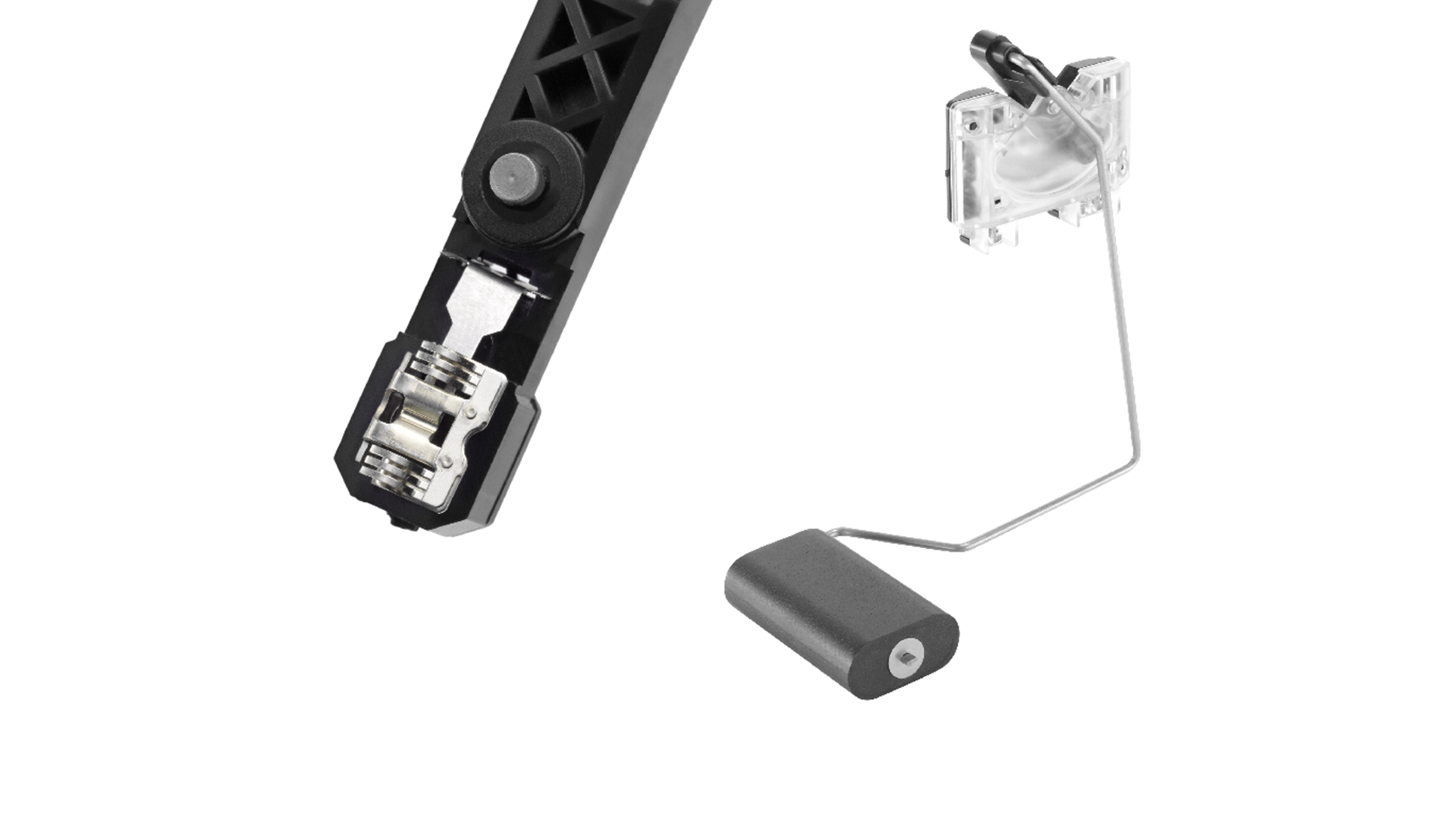

Picture: detail of the 'three finger contact' (on the left) Modular Tank Sensor (on the right).
Redundant contacts
Various contact materials for different technical requirements and market specific fuel compositions
Measuring range: angle up to 100°
Operating current: 1 up to 20 mA
Resolution: 1.25 Degree/Pad
Max. resistor tolerance: +/–1%
Operating temperature: – 40°C up to +80°C
