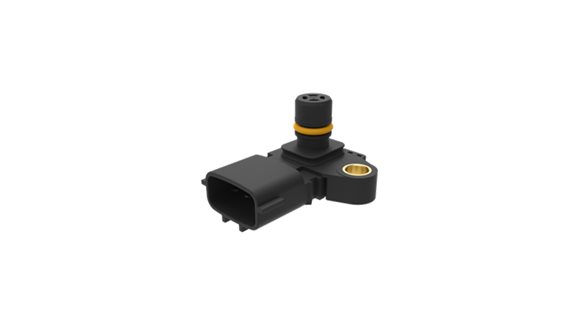

  • Pressure Sensor - Battery Safety Monitoring


    © Vitesco Technologies

    • Detects pressure rise due to battery cell venting
    • Designed for systems that comply with EVS-GTR (EV safety regulation)
    • Suitable ASIL rating according ISO26262
    • Fulfills toughest EMC requirements
    • Flexible housing, connector and mounting design
    • Pressure range: 10 kPa up to 150 or 400 kPa (adjustable)
    • Accuracy: 1% full scale
    • Temp. range: -40°C up to 140°C
    • Supply voltage: 5V ± 0.5V
    • Supply current at 5V: 10 mA max
    • Output: analog or SENT

    Vehicle Types
