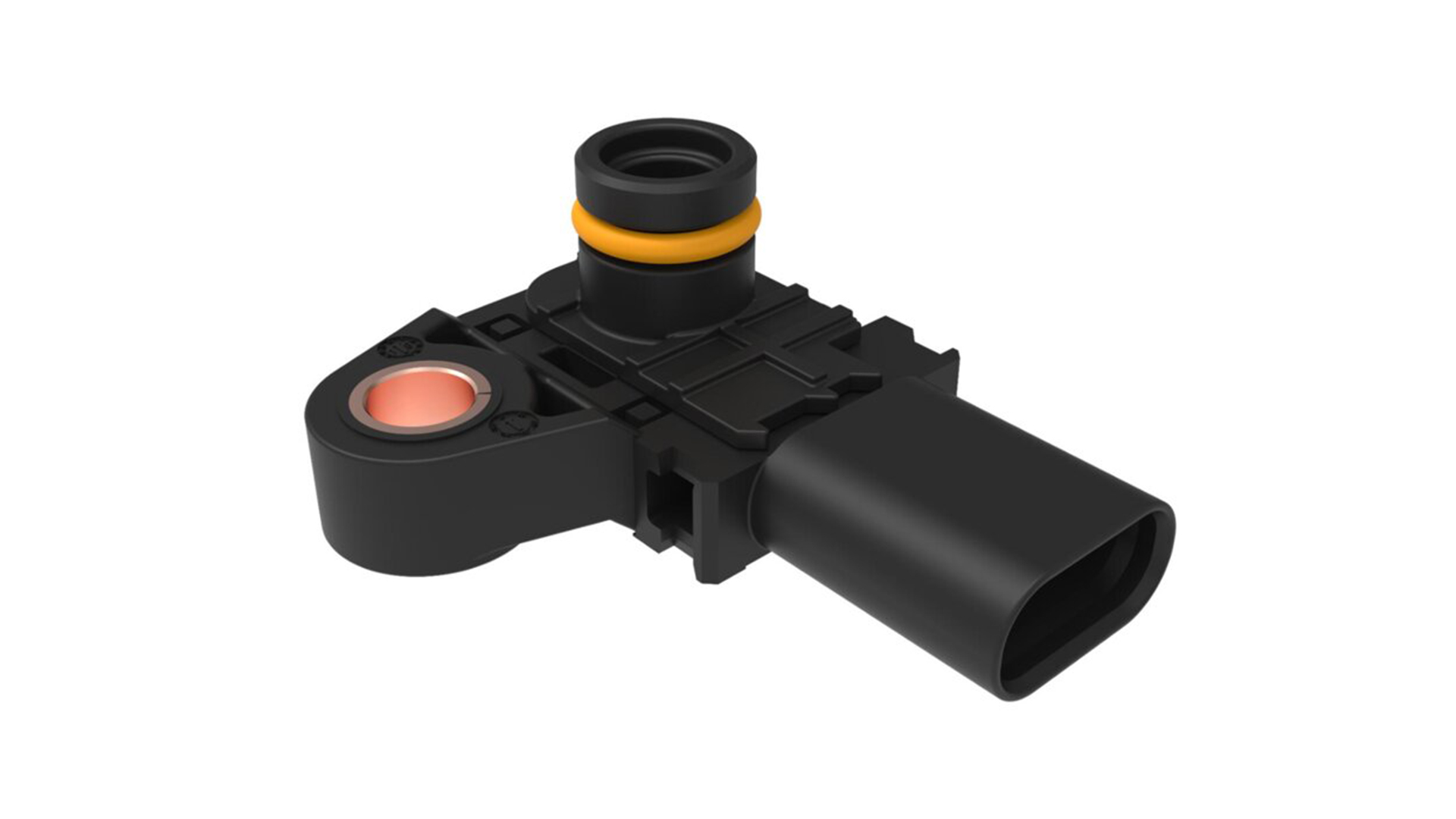

Relative pressure measurement used to monitor performance of positive crankcase ventilation system thru pressure measurement in fresh air tube. Design can snap fit to plastic tube.
Flexible calibration of transfer functions
Precision programmable clip levels
Internal and output diagnostic capability
High accuracy and temperature stability
Adjustable characteristic via electronic calibration
Pressure range: -10 kPa up to 10 kPa
Operating temp.: -40°C up to 125°C
Supply voltage: 5V ± 0.25V
Output signal: Analog or SENT
Transfer function: linear, ratiometric (analog version)
Accuracy over full-scale: 3% full span (10°C up to 85°C)
