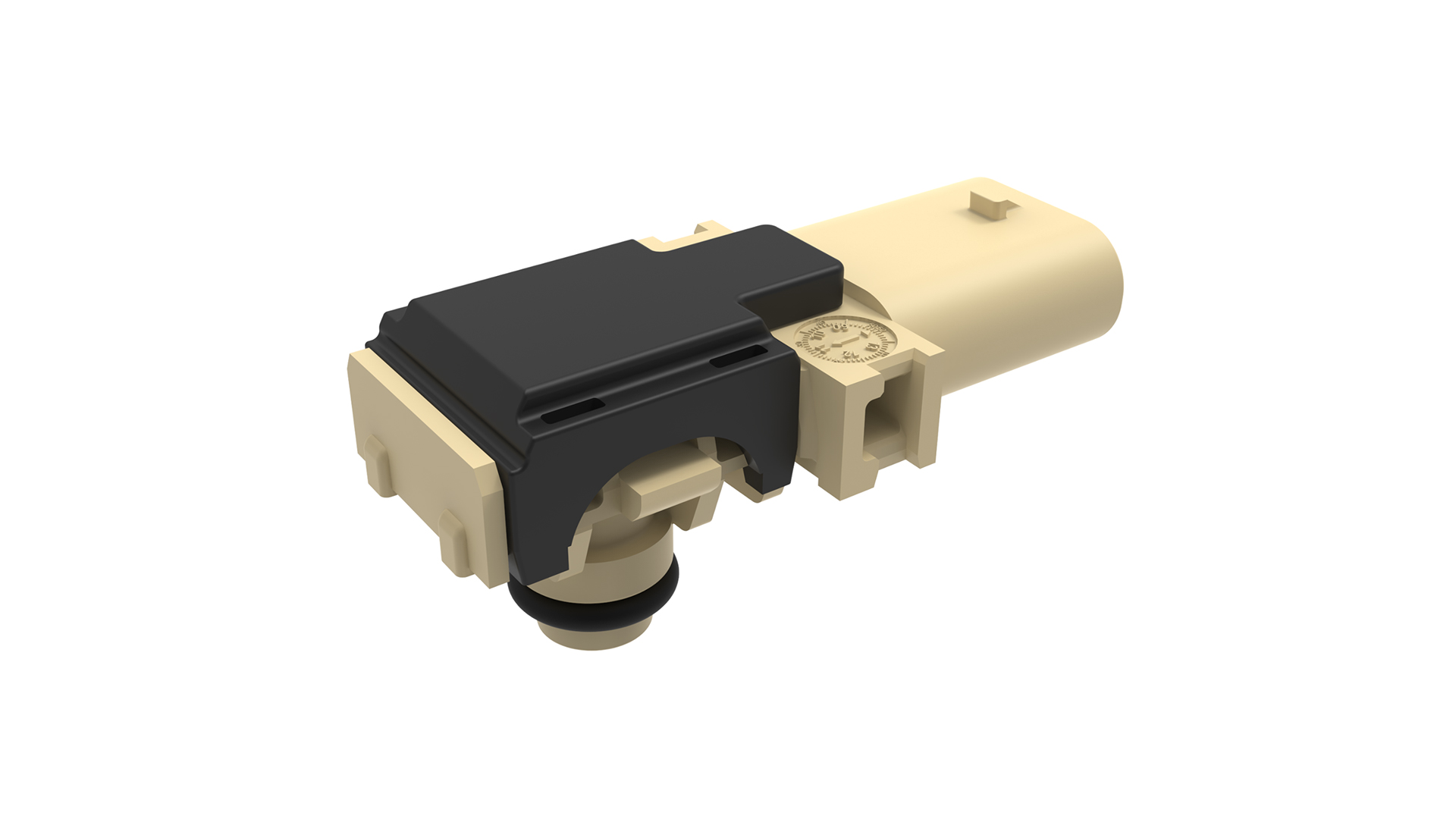

Relative pressure measurement used to detect any leak condition in evaporative fuel systems. Design can snap fit to plastic tube if any inline mounting is required.
Flexible calibration of transfer functions
Precision programmable clip levels
High accuracy and temperature stability
Adjustable characteristic via electronic calibration
Pressure range: -5 kPa up to 5 kPa (Low range)
Pressure range: : -15 kPa up to 45 kPa (High range)
Operating temp.: -40°C up to 125°C
Supply voltage: 5V ± 0.25V
Output signal: Analog or SENT
Transfer function: linear, ratiometric (analog version)
