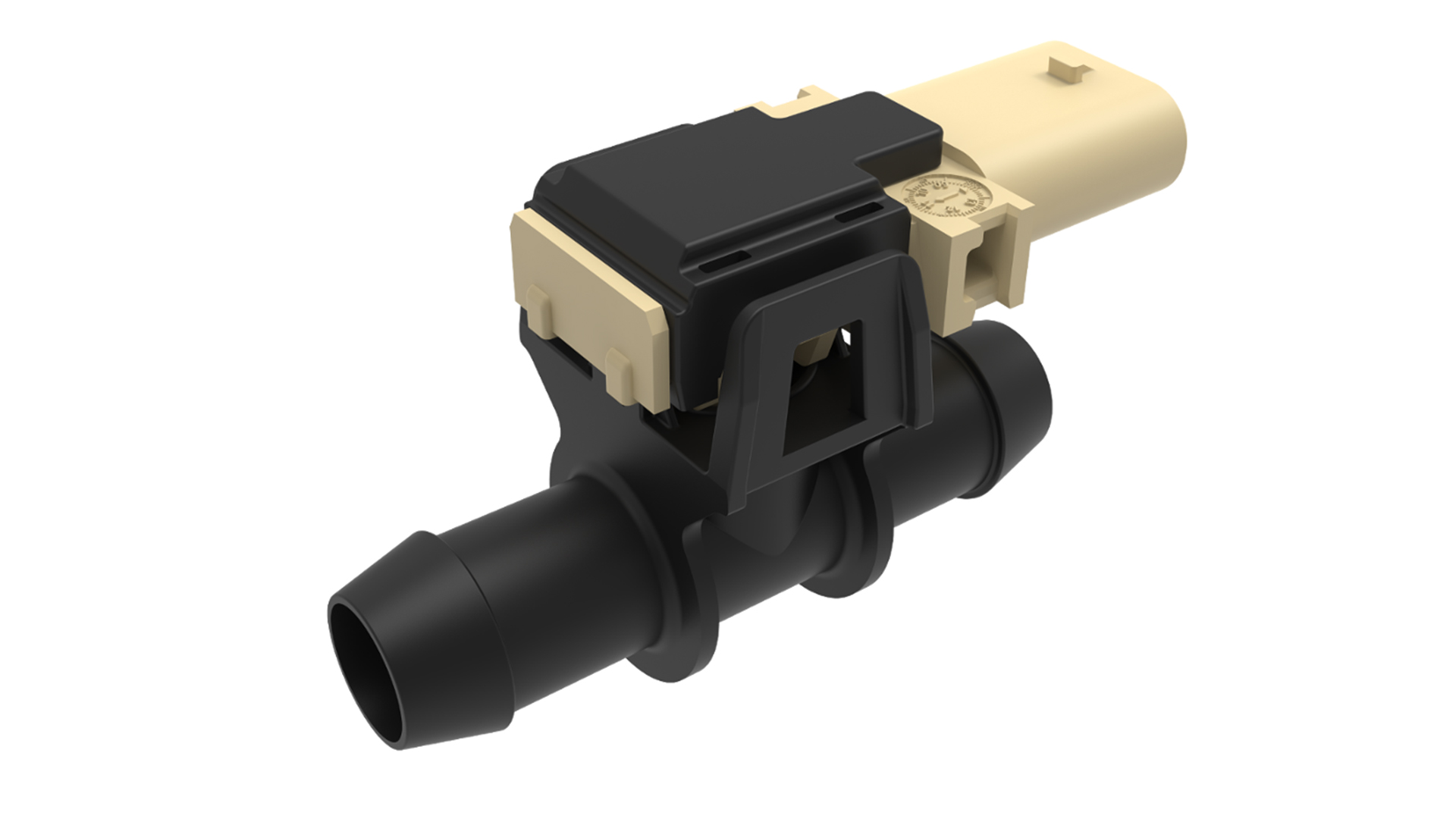

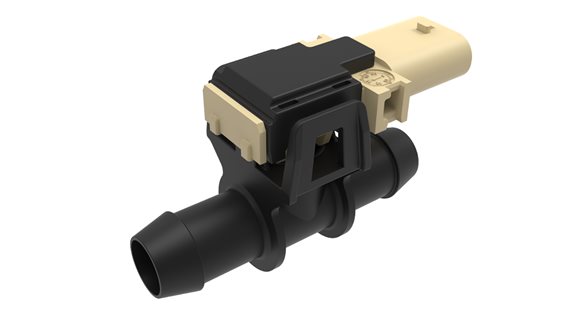

  • Pressure Sensor - In Line Fuel Vapor Gauge


    © Vitesco Technologies

    • Flexible calibration of transfer functions
    • Precision programmable clip levels
    • Internal and output diagnostic capability
    • High accuracy and temperature stability and fulfills toughest EMC requirements
    • Flexible housing, connector and mounting design
    • Adjustable characteristic via electronic calibration
    • Pressure range : -5 kPa up to 5 kPa (Low range) and -15 kPa up to 45kPa (High range)
    • Operating temp.: -40°C up to 125°C
    • Supply voltage: 5V ± 0.25V
    • Output signal: Analog or SENT
    • Transfer function: linear, ratiometric (analog version)
    • Accuracy over full-scale: 1.5% full span (10°C up to 85°C)

    Vehicle Types
