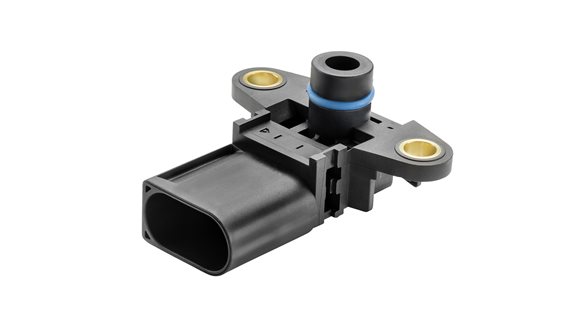

  • Pressure Sensor - Manifold Gauge


    © Vitesco Technologies

    • Flexible calibration of transfer functions
    • Precision programmable clip levels
    • Internal and output diagnostic capability
    • High accuracy and temperature stability
    • Fulfills toughest EMC requirements
    • Pressure range: -105 kPa up to 40 kPa (gauge)
    • Accuracy: 1% full scale (10°C up to 85°C)
    • Temp. range: -40°C up to 125°C
    • Supply voltage: 5V ± 0.5V
    • Supply current at 5V: 10 mA max
    • Load resistance: > 4.7 kΩ

    Vehicle Types
