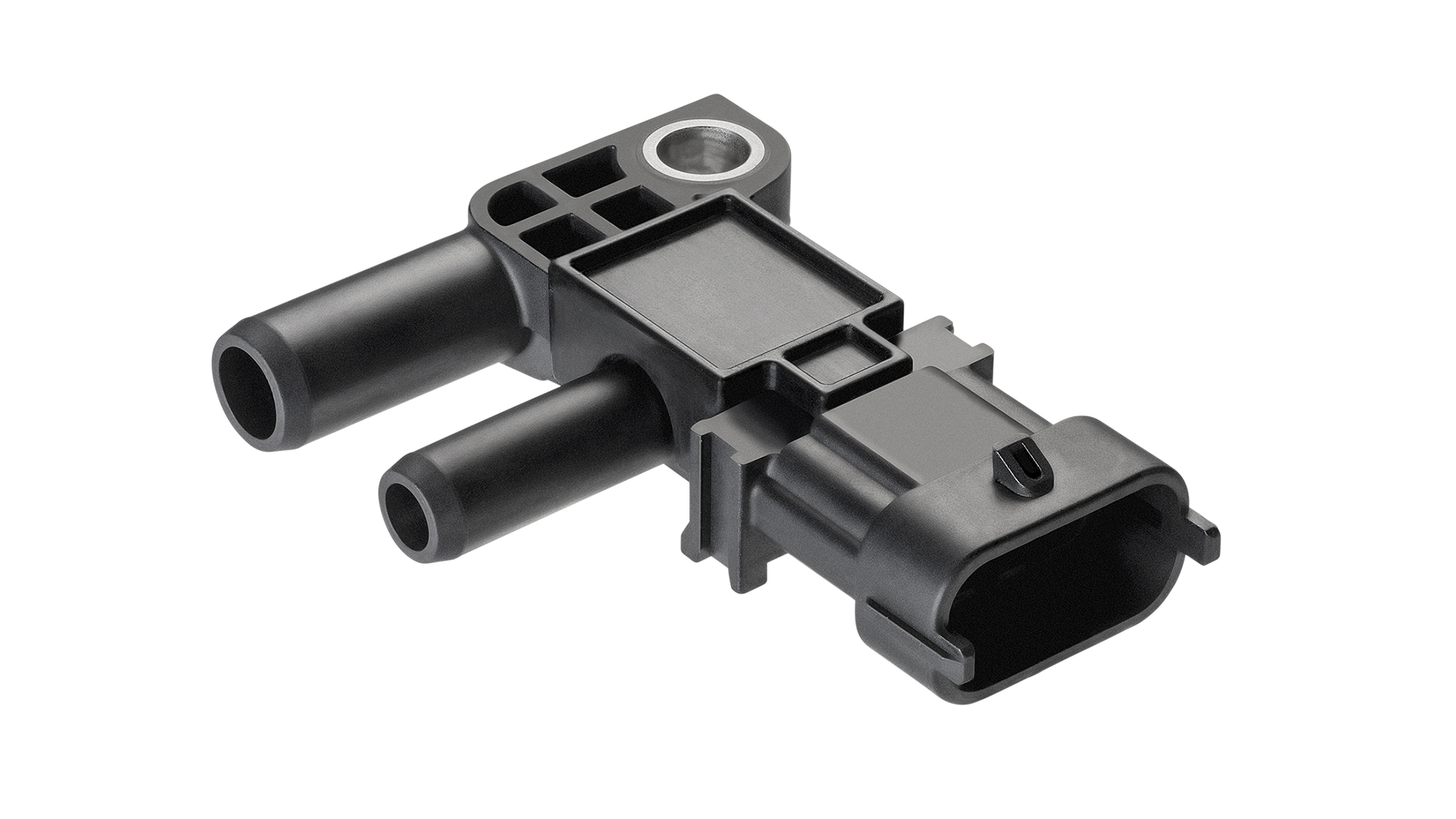

  • Pressure Sensor - Particle Filter / EGR Differential


    © Vitesco Technologies GmbH (exclusive rights)

    • Flexible calibration of transfer functions
    • Precision programmable clip levels
    • Internal and output diagnostic capability
    • High accuracy and temperature stability
    • Flexible housing, connector and mounting design
    • Pressure range: -50 kPa up to 100 kPa (differential)
    • Accuracy: 1% full scale (10°C up to 85°C)
    • Temp. range: -40°C up to 125°C
    • Supply voltage: 5 V ± 0.5 V
    • Supply current at 5 V: 10 mA max
    • Load resistance: > 4.7 kΩ
    • Output signal: analog or SENT

    Vehicle Types
