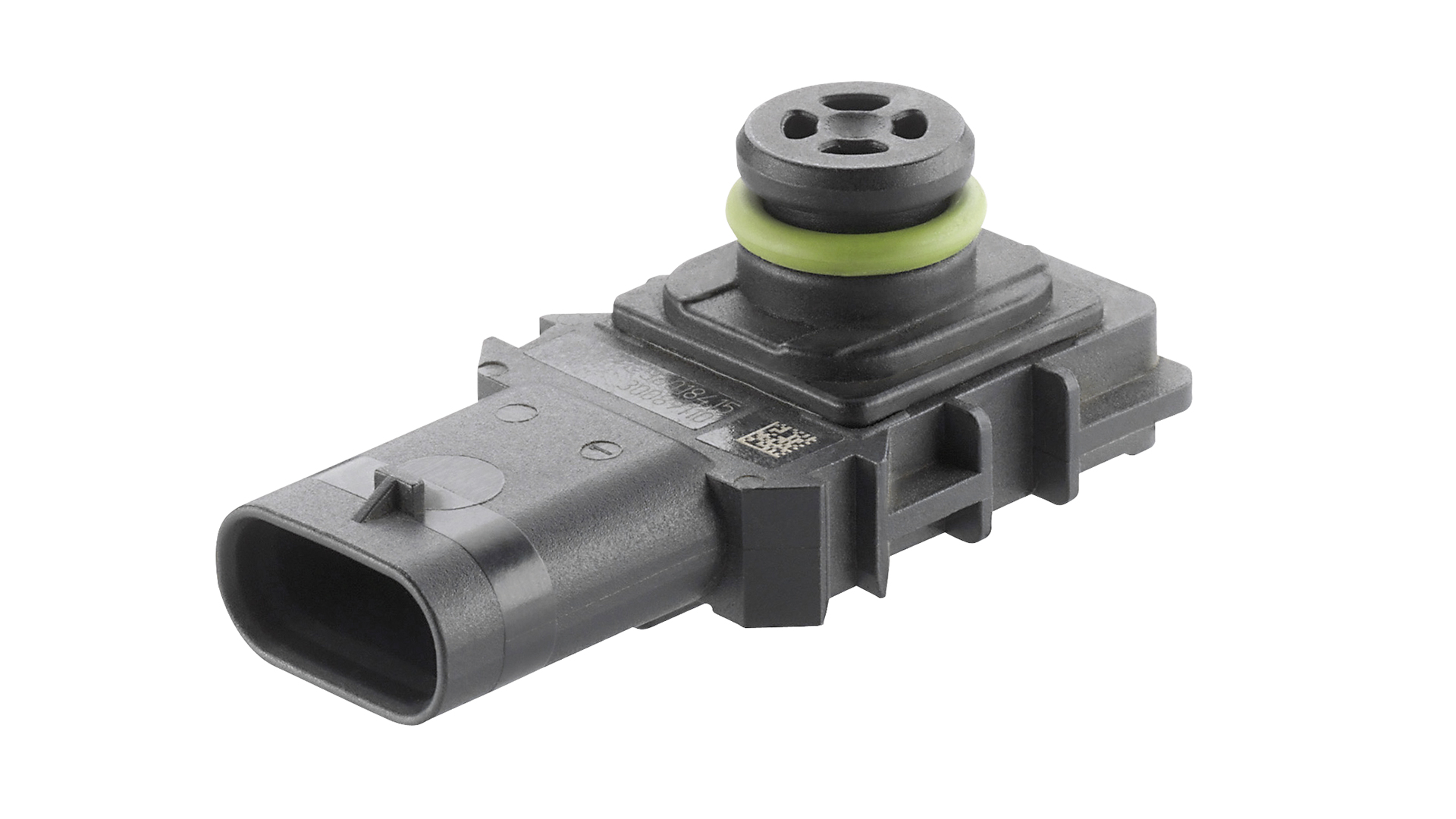

  • Pressure Sensor - Secondary Air Absolute


    © Vitesco Technologies

    • Flexible calibration of transfer functions
    • High accuracy and temperature stability
    • Low cost design and high quality
    • Fulfills toughest EMC requirements
    • Flexible housing, connector and mounting design
    • Pressure range: 50 kPa up to 150 kPa (for SAA)
    • Accuracy: 1% full scale (10°C up to 85°C) and temp. range: -40°C up to 140°C
    • Supply voltage: 5V ± 0.5V
    • Supply current at 5V: 10 mA max
    • Load resistance: > 4.7 kΩ

    Vehicle Types
